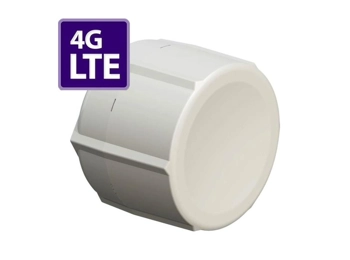

4G/3G Mikrotik LTE6 Router

Features:

The SXT LTE kit (product code RBSXTR&R11e-LTE) is a device for remote locations that are within cellular network coverage. However, due to it’s professional LTE chip design and high gain antenna, it can provide connectivity for your building even where cell phones can’t.

In comparison with our first generation model RBSXTLTE3-7, the SXT LTE kit is powered by faster CPU and supports not only LTE with more speeds, but also 2G and 3G, as well as much wider band range.
The unit is equipped with two Ethernet ports (the second port has PoE-out functionality), so you can use it to power up another device. Unit is shipped with a 24 V power supply, but can support full range 18-57 V and is 802.3af/at compliant.

The device has a built in high quality 2G/3G/4G/LTE Category 4 modem for speeds of up to 150 Mbit/s downlink and 50 Mbit/s uplink, as well as two Micro SIM slots for backup link.

RBSXTR&R11e-LTE includes LTE modem that supports International LTE bands 1, 2, 3, 7, 8, 20, 38 and 40.

Specification:

Product code: RBSXTR&R11e-LTE
CPU: QCA9531 650 MHz
Size of RAM: 64 MB
Storage: 16 MB Flash
10/100 Ethernet ports: 2
LTE antenna gain: 9 dBi
Antenna beam width: 60°
LTE category: 4 (150Mbps Downlink, 50Mbps Uplink)
3G category: R7 (21Mbps Downlinks, 5.76Mbps Uplink)
2G category: Class12
SIM slot: 2 (Micro SIM)
PoE in: Yes, on Ether1
PoE out: Yes, on Ether2, max out per port output (input < 30 V): 600 mA, max out per port output (input > 30 V): 400 mA
max total out (A): 600 mA
Supported input voltage: 18 - 57 V (Passive PoE, 802.3af/at on Ether2)
Dimensions: 140 x 140 x 103 mm
Operating temperature: -40°C .. +60°C tested
Operating System: RouterOS (License level 3)
Max Power consumption: 6 W
Supported bands

LTE (FDD) bands: 1(2100)/2(1900)/3(1800)/7(2600)/8(900)/20(800)
LTE (TDD) bands: 38(2600)/40(2300)
3G bands: 1(2100)/2(1900)/5(850)/8(900)
2G bands: 2(1900)/3(1800)/5(850)/8(900)
Supplied with 10M Cat5e Crimped cable
